Overview

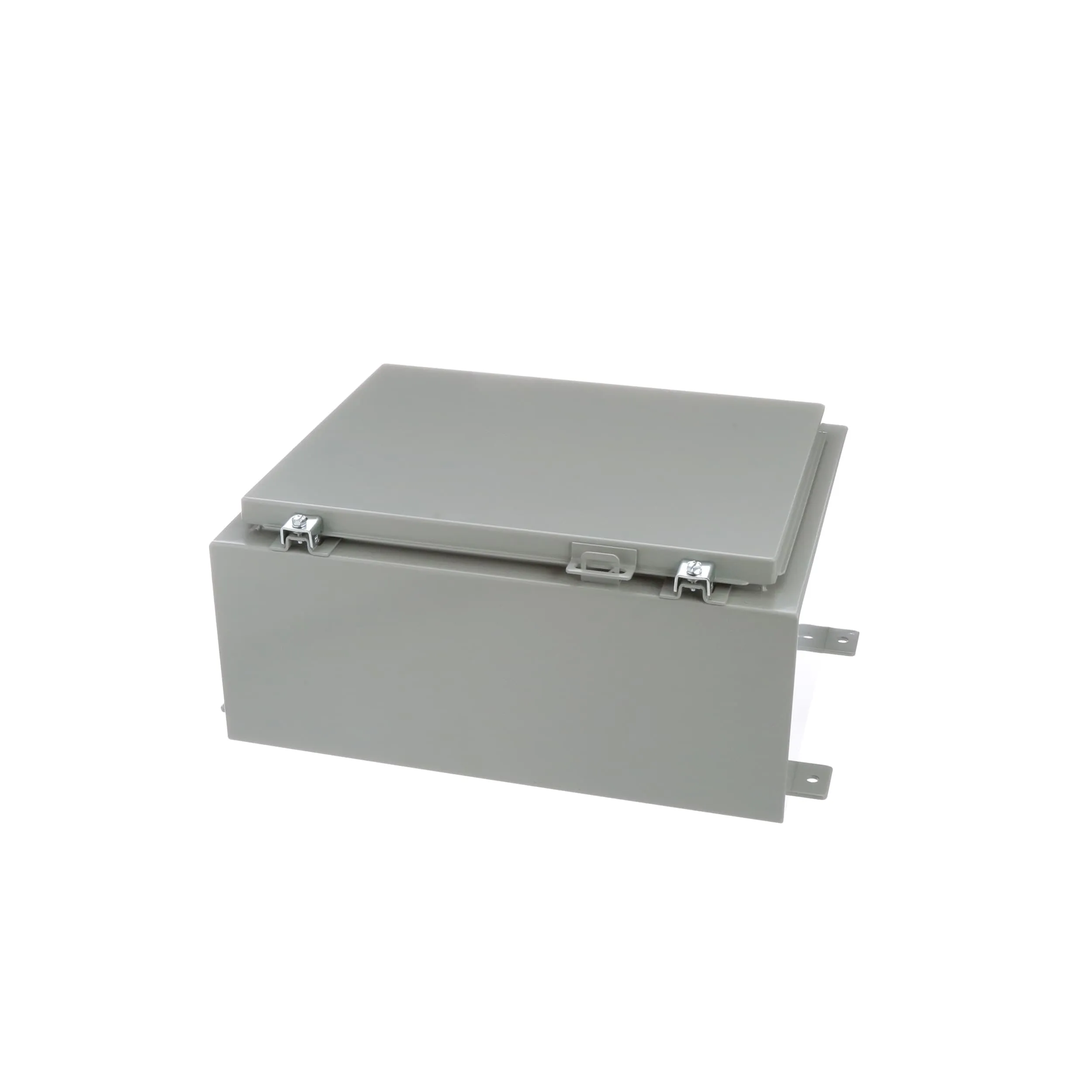

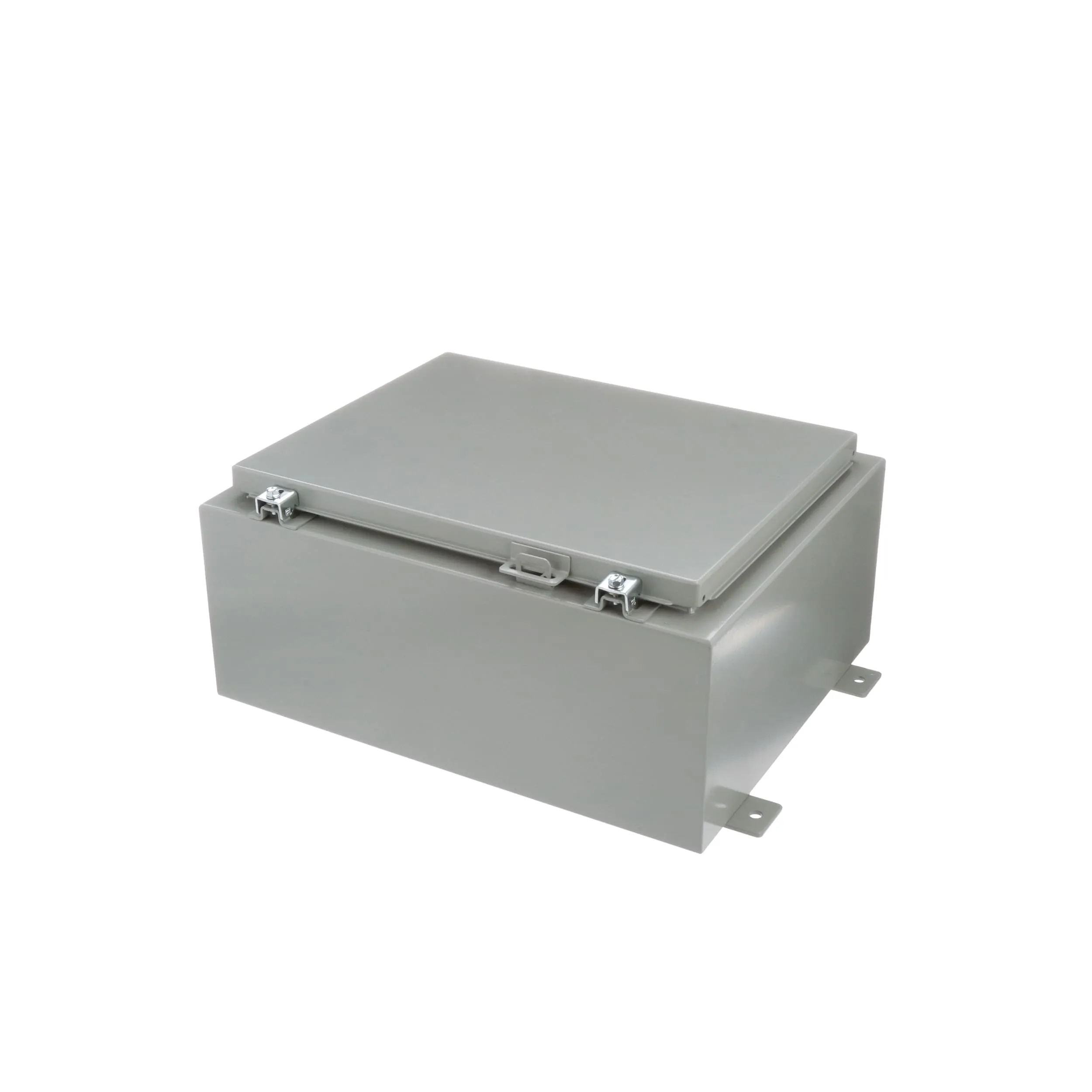

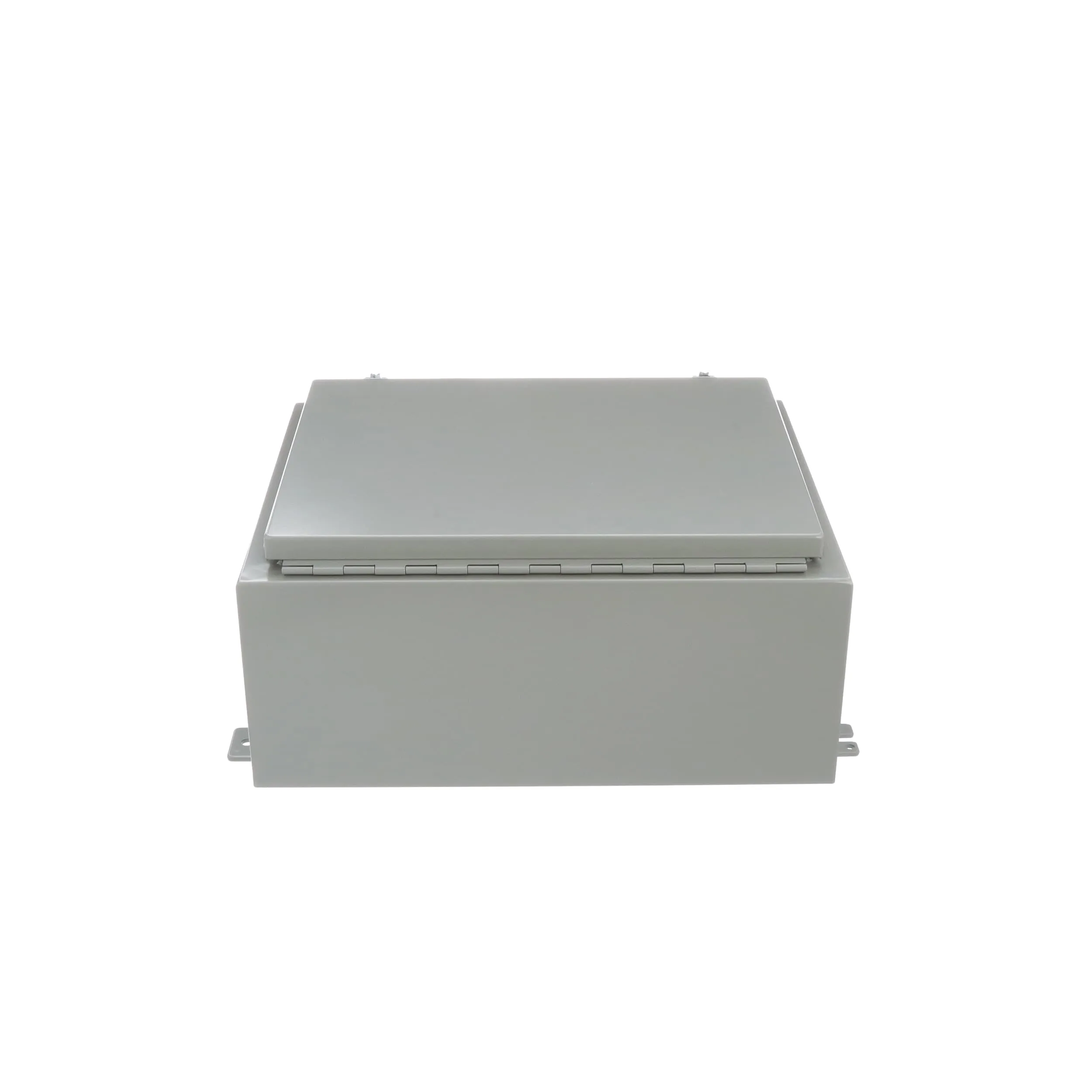

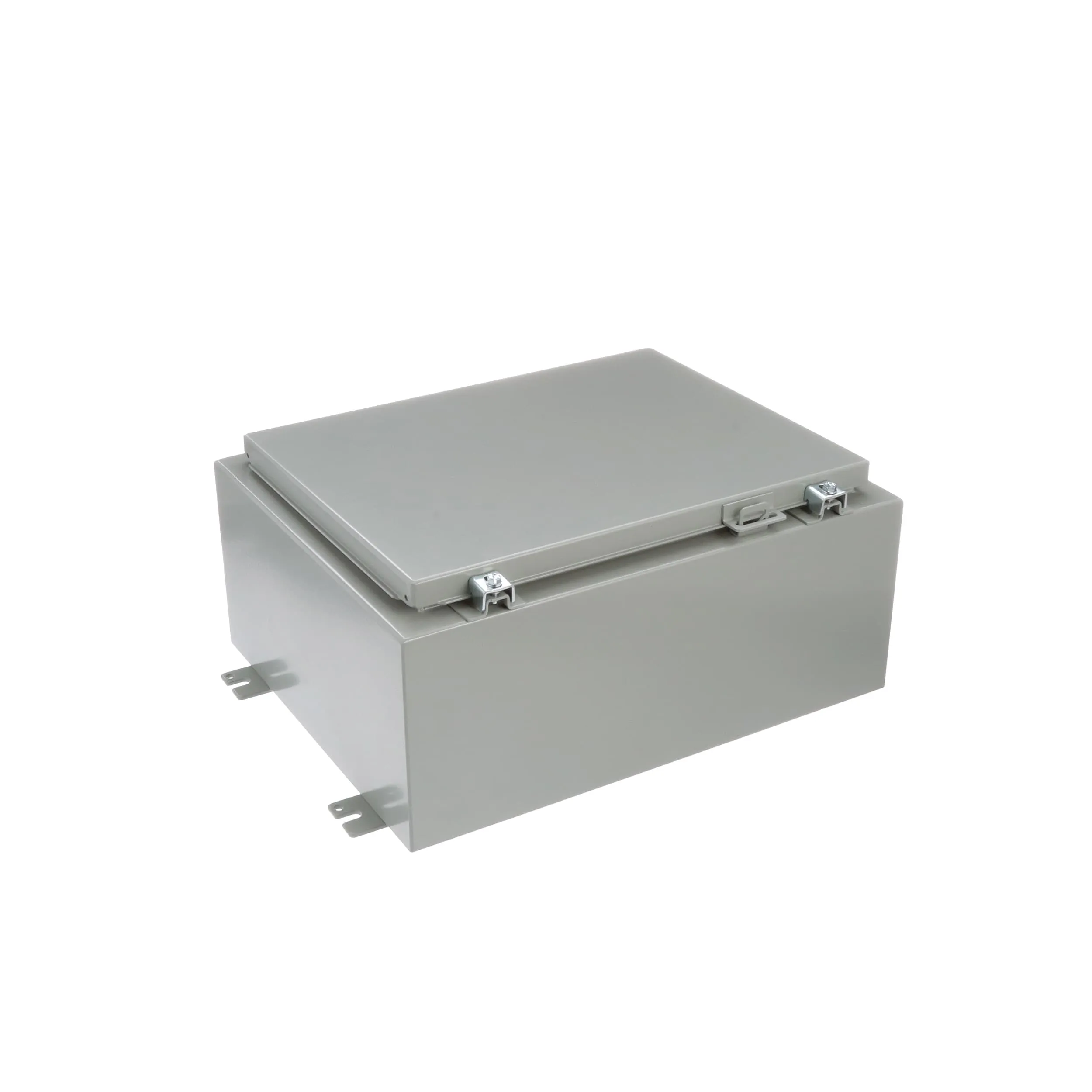

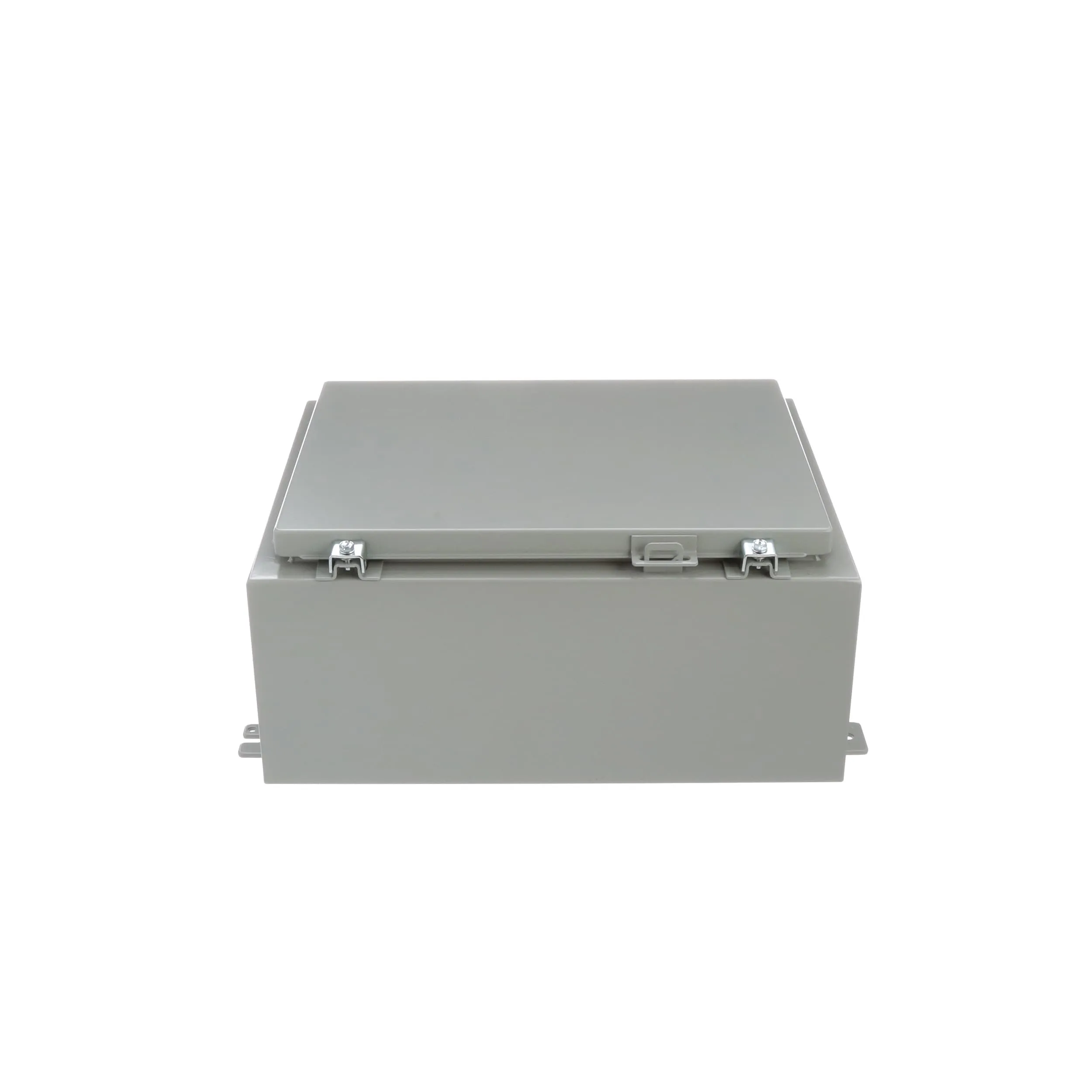

Hoffman A201608LP — Single-Door NEMA Type 12 and 13 Wall-Mount Enclosures:

For use in housing electrical and electronic controls, instruments, components, and associated wiring, these enclosures incorporate hinged doors that provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil, and water. For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.

Features:

Enclosure bodies are either 14 or 16 gauge steel. All doors are 14 gauge steel

Seams continuously welded and ground smooth; no holes or knockouts

External wall-mounting brackets are 14 gauge steel

Return flanges around three sides of door and all sides of enclosure opening exclude liquids and contaminants

Door clamps are quick and easy to operate

Removable heavy-gauge continuous hinge pin

Hasp and staple for padlocking

Data pocket is high-impact thermoplastic

Collar studs provided for mounting optional panels

Bonding provision on door

Optional panels are 12 gauge steel

White inside with ANSI 61 gray finish outside

UL 508A Listed; Type 12, 13; File No. E61997

cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997

NEMA/EEMAC Type 12 and 13

CSA, File No. 42186: Type 12

IEC 60529, IP65
