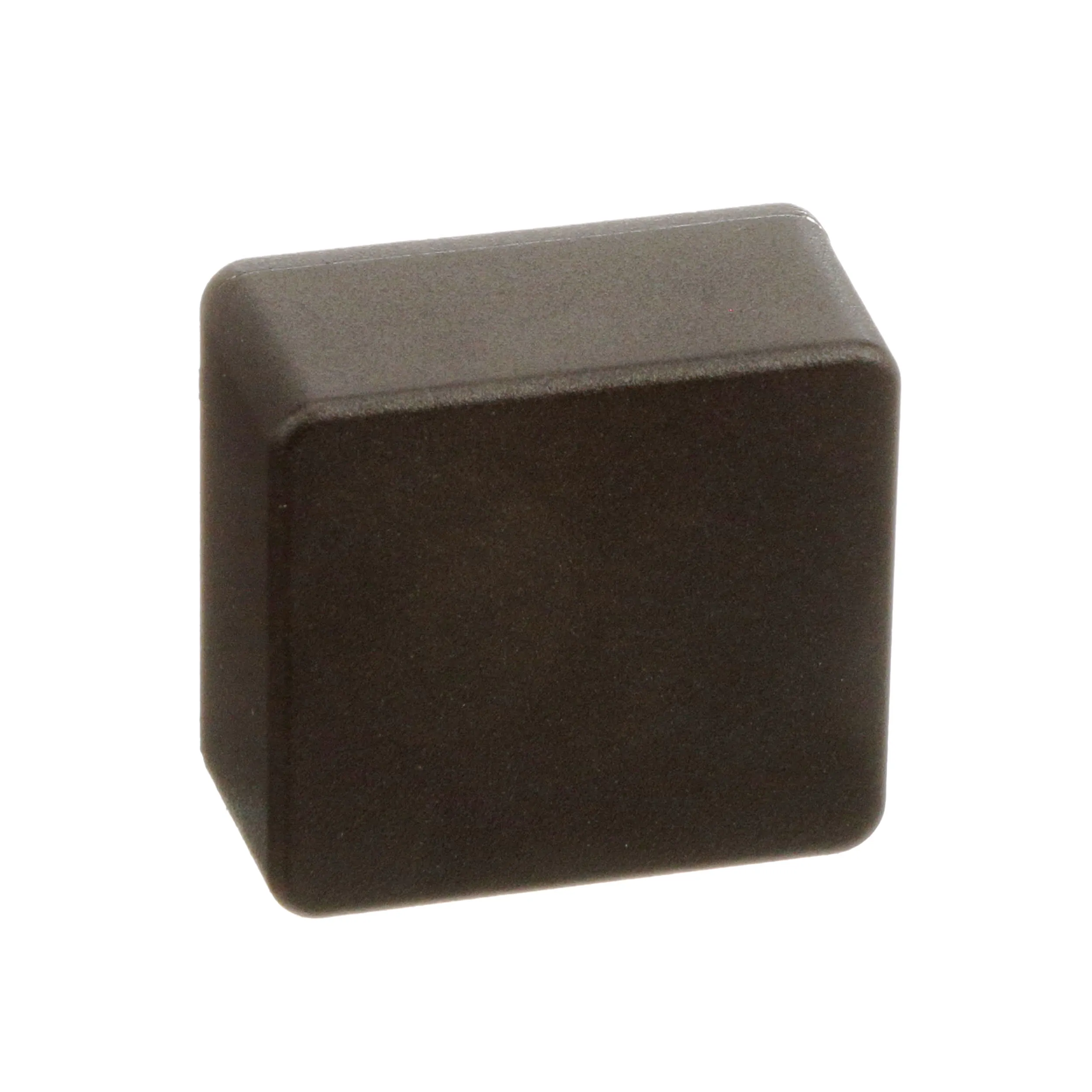

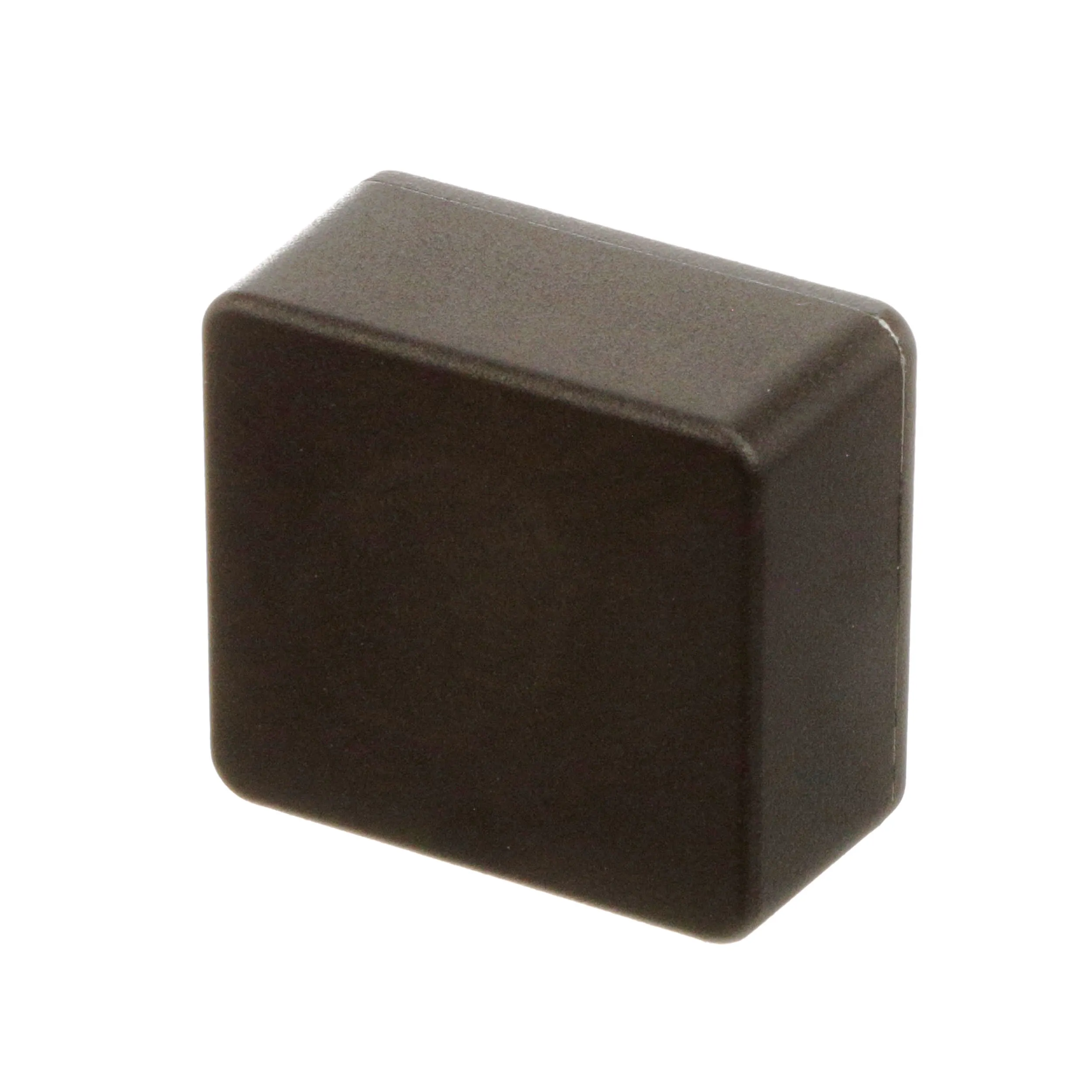

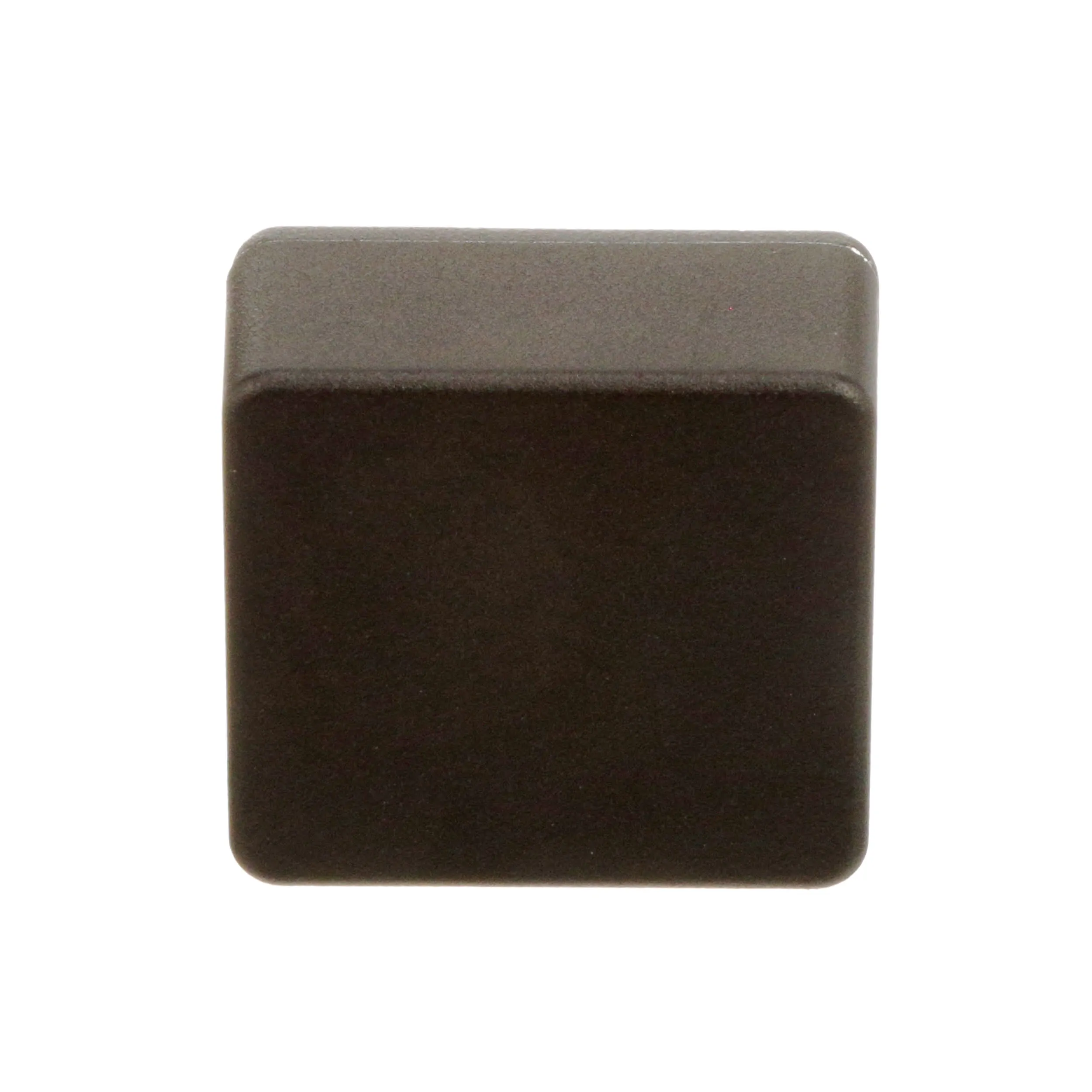

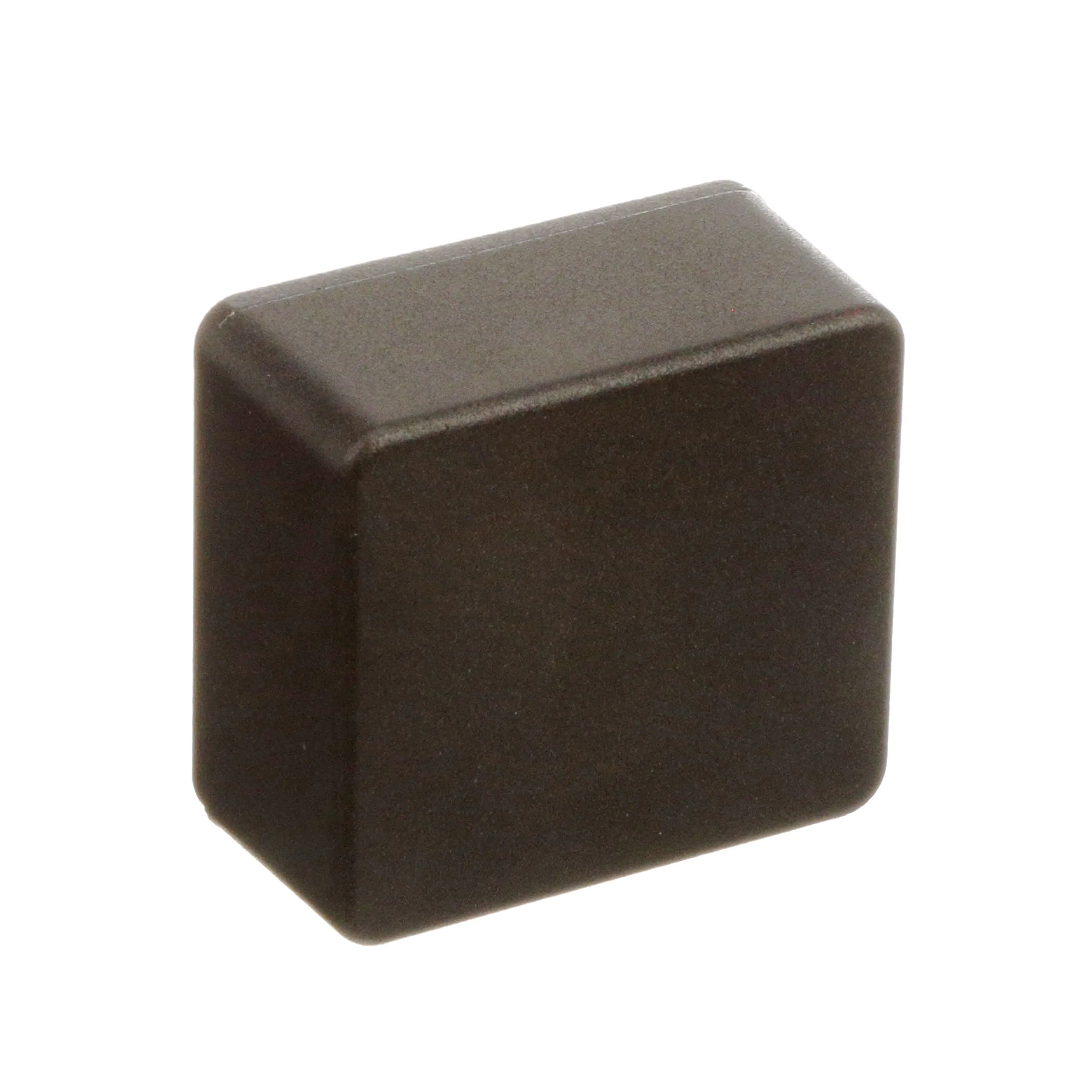

Name: Hammond Manufacturing 1550WQBK
SKU: 610268

Product Attribute	Attribute Value
Color	Black
Dimensions	2.362 x 2.165 x 1.185 in. (59.99 x 54.99 x 30.1 mm)
IP Rating	IP66
Material	Aluminum
Mounting Type	Desktop
Series
Size	Xtra Small
Size, Approximate Depth	1.2" (30mm)
Size, Approximate Height	2.4" (60mm)
Size, Approximate Width	2.2" (55mm)
Type	Box-Lid
UPC Code	623980057583

Overview

Key Features

Rugged, Die-Cast Aluminum Alloy (Tough Yet Easy to Machine), Electronic Instrument Enclosure

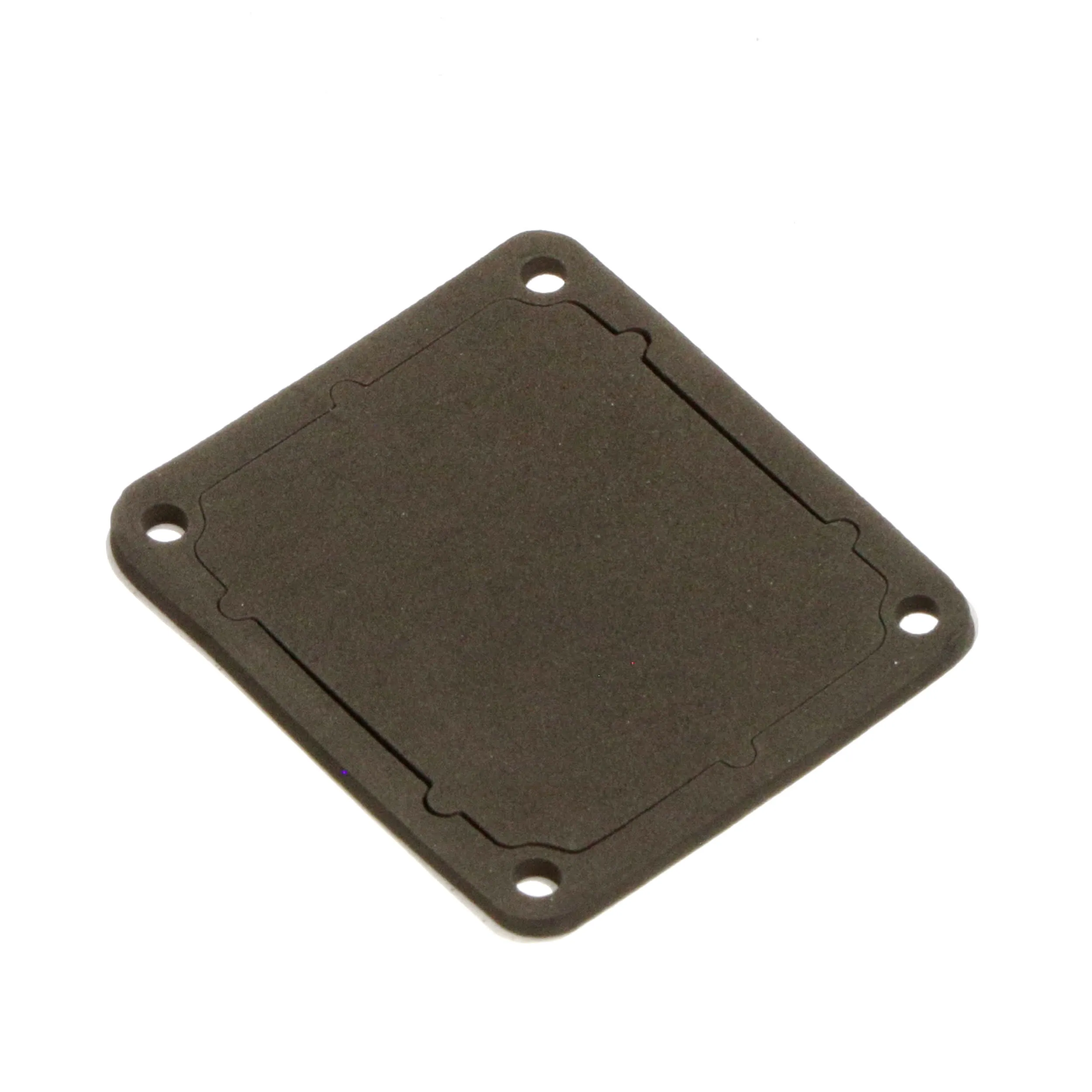

Lap Joint Construction with a Self-Adhesive, EVA Foam Gasket for the Lid Provides Protection Against Access of Dust and Water. If you Do Not Require Gasket — Refer to the Non-Watertight Version 1550 Series

Unpainted Version is Vibra Finished for a Smooth Surface with No Sharp Edges

Painted Version is Painted with Tough Polyester Powder Paint for a Lasting Finish, Even After Machining. Paint is Only Applied to the Exterior Surface and Black Screws Are Included to Enhance Appearance

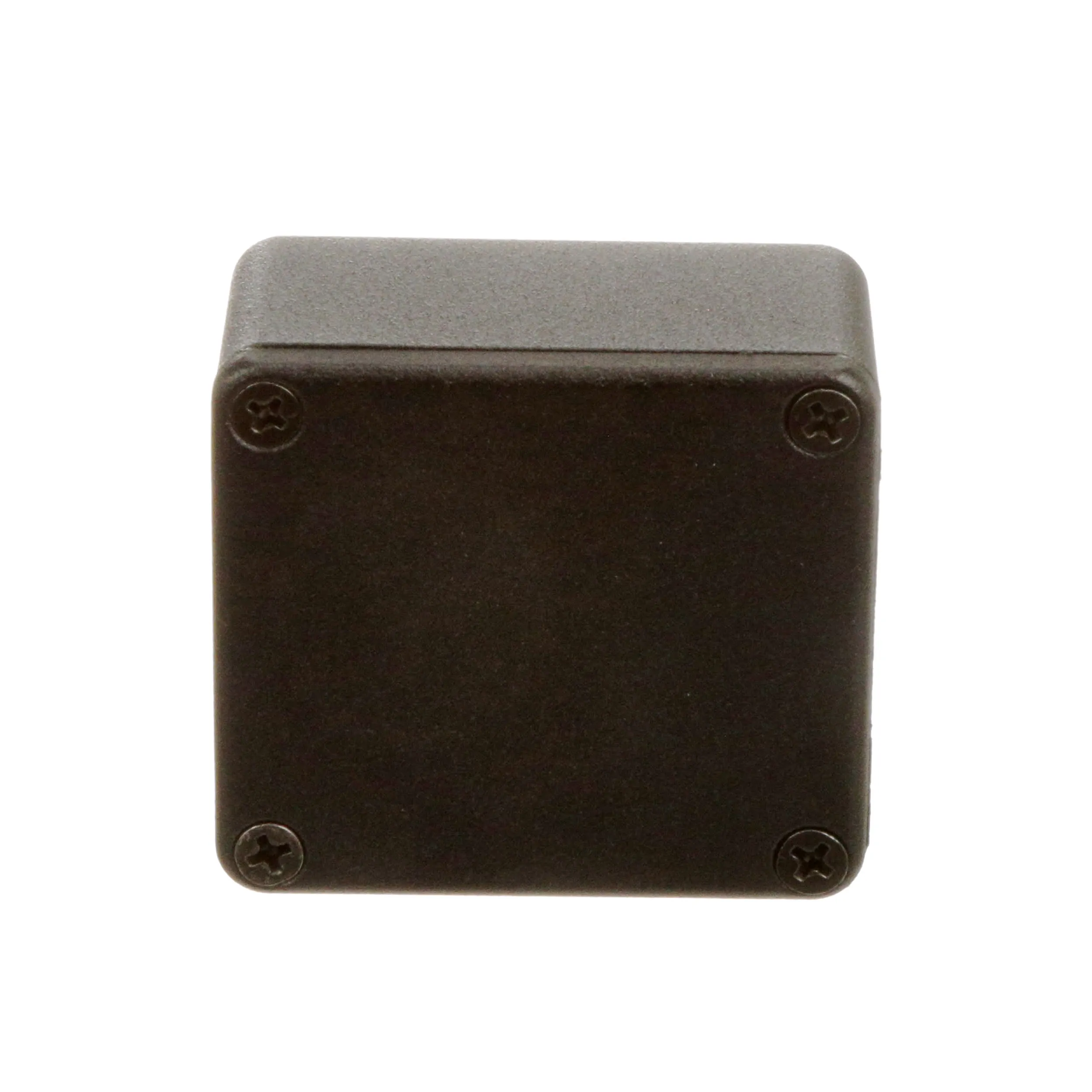

Four M3.5× 0.6 mm Stainless Steel, Philips Head, Machine Screws Secure Lid — Into Factory Tapped Holes

Designed to Meet IP66 (with Properly Installed Gasket and Lid Screws Torqued at 55 cN.m)

No Internal Ribs for Easy Installation of Connectors without Interference or Additional Milling

Low Side Wall Draft Angle (2 Degrees or Less) for Easy P.C. Board Mounting
