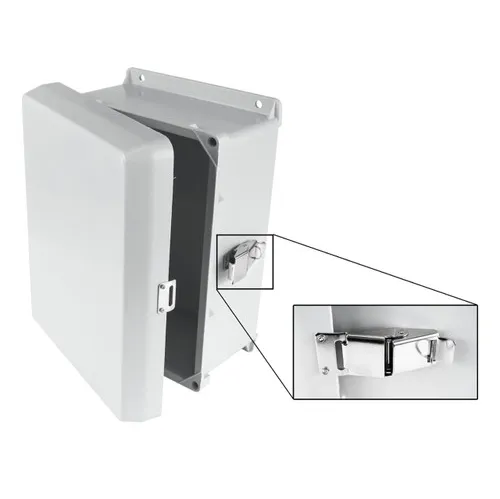

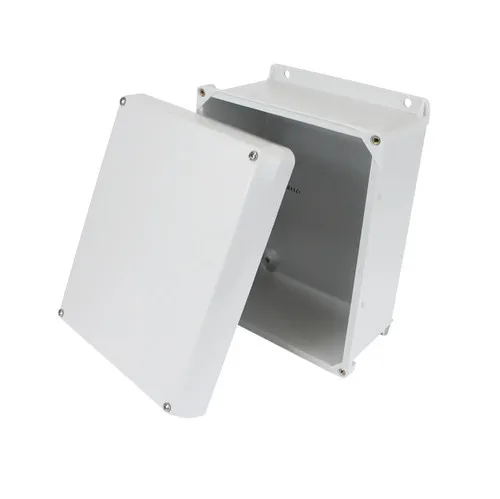

10 x 8 Electrical Enclosure

Also Known As:

Electrical Enclosure, 10 x 8 Electrical Enclosure, Enclosures and Boxes

About:

Enclosures are used to protect wire connections from short circuits which can lead to a fire. Using enclosures can contain or prevent fires. Pacer's enclosures are made with the harshest marine environments in mind. This enclosure has outside dimensions of 11.32" x 9.32" and is 5.39" deep. It is made in accordance with the Joint Industrial Council (JIC)-USA. The mounting plate used to install these enclosures is sold separately.

Features:

• Designed in accordance with the Joint Industrial Council (JIC)-USA
• Continuous gasket of polyurethane foam for optimal integrity
• Cover screw holes in corners are outside of gasket area
• All mounting hardware is made of 316 stainless steel
• The enclosure can be readily worked with conventional tools
• Withstands continuous temperature up to 150°C
• Aluminum mounting plates sold separately
• Junction boxes are sold with solid or clear covers

Applications:

• Indoor or outdoor use
• Junction boxes
• Electronic housings
• Push button stations

Specifications:

• Exterior Dimensions : 11.32" x 9.32" x 5.39"
• Interior Dimensions : 10.00" x 8.00" x 5.10"
• Part No : ENCL1008
